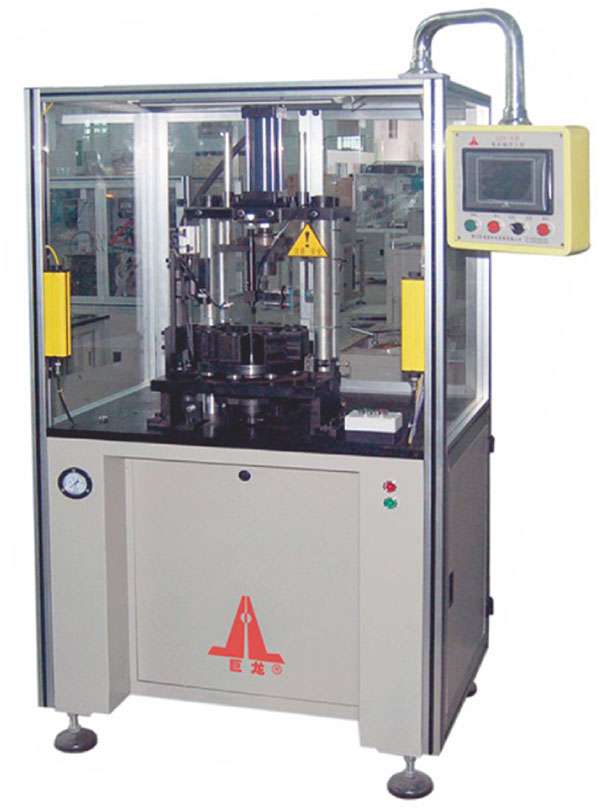

（5/8工位）ZZ-8型 轉臺式電樞沖片入軸機
ZZ-8 Turntable Eight Stations Shaft Inserting Machine
本機是專為電機軸壓入鐵芯沖片，適用于高速沖壓整體沖片鐵芯而設計的專用設備。采用三菱PLC程控,彩色觸摸屏控制，八個工位轉位工作，入軸時，有測量壓力傳感器測量入軸時壓力，裝有測量尺寸光柵尺，當測量壓裝尺寸值超差或壓裝力過大或過小設定范圍時報警，有光電安全保護開關。
This machine is designed for the motor shaft pressed into the core punch, for high-speed punching the overall punching core design of special equipment.The use of Mitsubishi PLC program-controlled, color touch screen control, eight-bit translocation work into the shaft, the pressure sensor to measure the pressure into the shaft, with measurement of the size of the grating, when measuring the size of the pressure installed pressure tolerance or pressure Too large or too small setting range when the alarm, a photoelectric safety switch.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
總功率Total power |
3kw |
| 工作行程Working stroke | ≤150mm |
| 液壓壓力Hydraulic Pressure |
0~7MPa |
| 公稱壓力Nominal pressure |
20KN |
